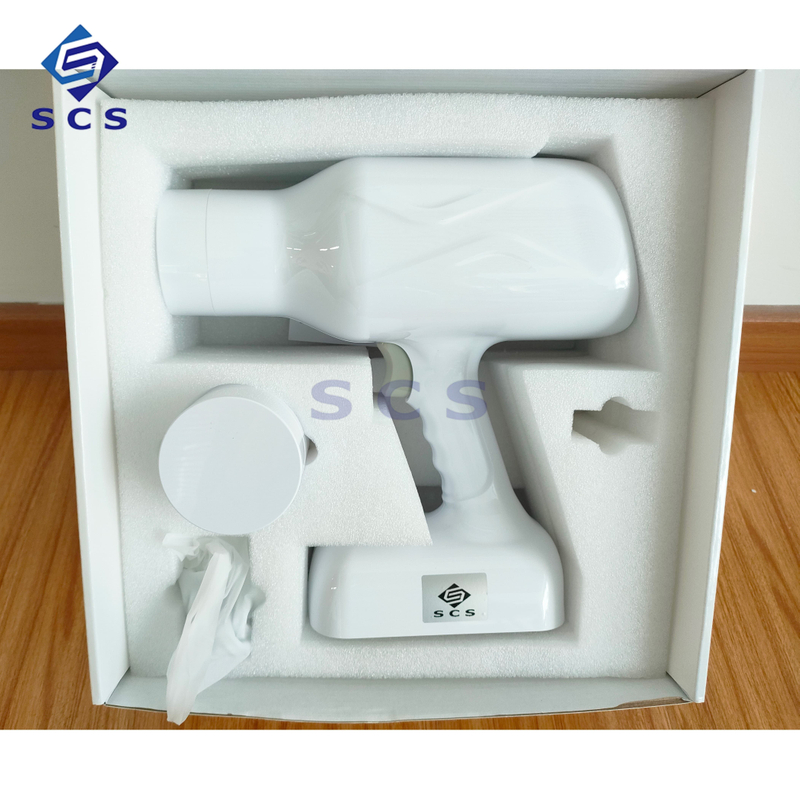

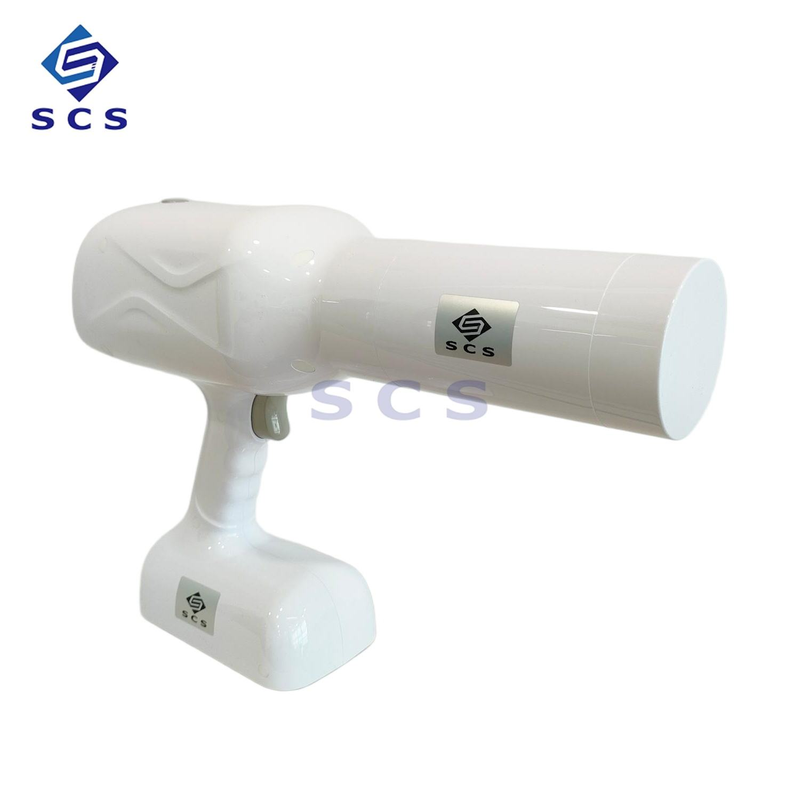

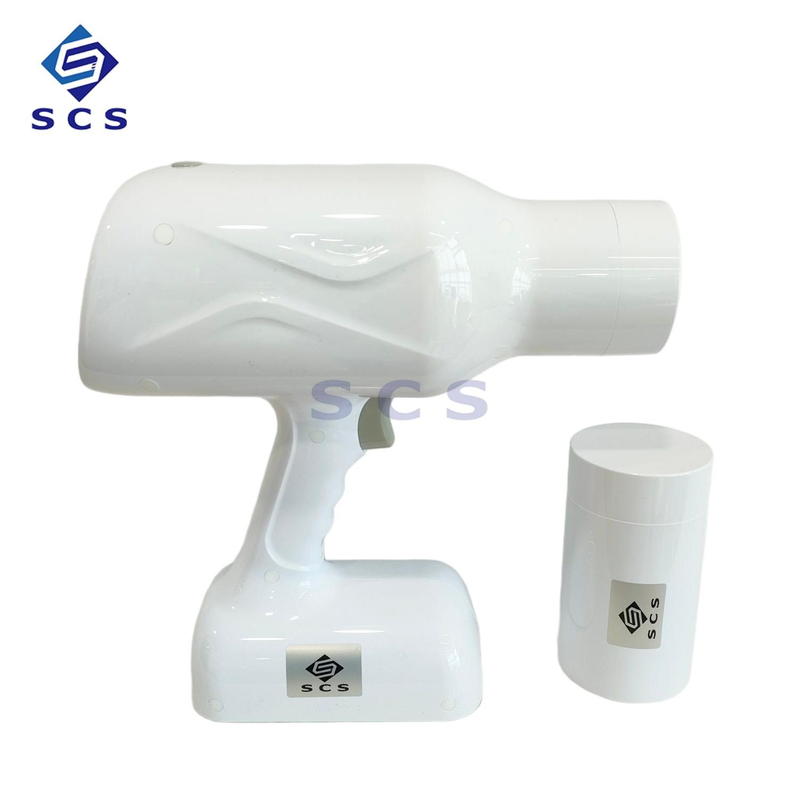

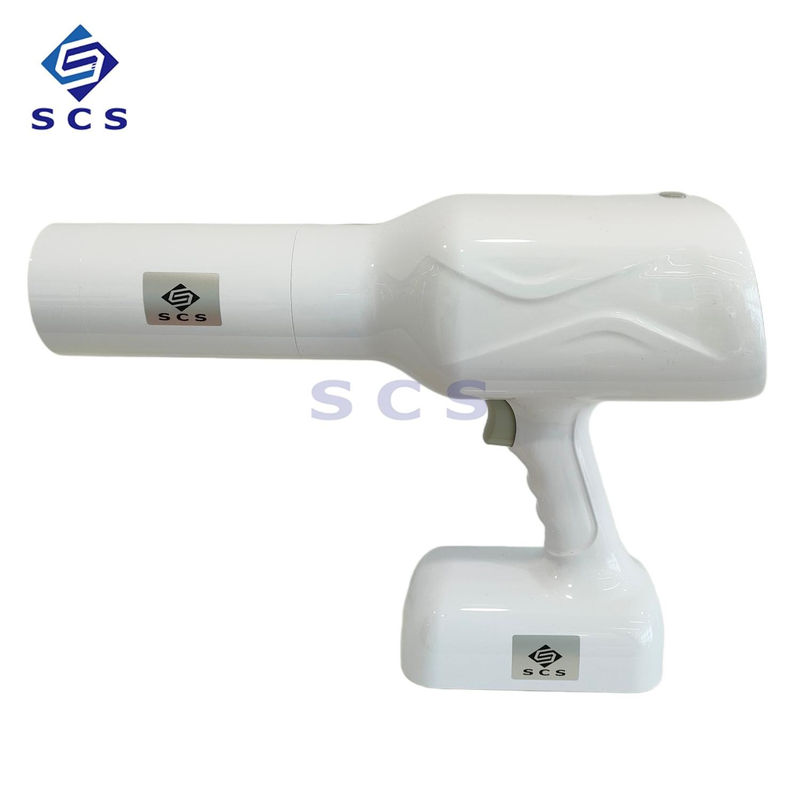

Touch Screen High-Frequency Wireless Digital Portable X-Ray Unit
Introducing the next generation of dental imaging: the Touch Screen High-Frequency Wireless Digital Portable X-Ray Unit. Engineered for the modern practitioner who demands precision, efficiency, and unparalleled convenience, this system transforms everyday diagnostics into a seamless experience.
| Maximum output power loading factor combination | 65kV, 2.5mA |
| Maximum loading factor combination | 65kV, 2.5mA, 2s |
| Maximum output electric power | 0.16kW(65kV, 2.5mA, 0.1s) |
| Inverter frequency of the high voltage generator | 80kHz |
| Tube voltage | 65kV |
| Tube current | 2.5mA |
| Adjustment range of the loading time | 0.02-2.00s, adjustable |
| Battery | DC 14.4V, 2500mAh, ±10% |
| Input Voltage Uniphase | AC 100-240V, 1.5A, ±10% |
| Output voltage | DC 25.2V, 2.8A |
| Supply Frequency | 50/60Hz, ±1Hz |
| Power supply internal resistance | ≤2Ω |
| Distance of the Focal point to skin | ≥200mm |
| X-ray field size at the end of beam limiting tube | Round, Φ≤60mm |
| Total filtration of X-ray tube assembly | >2.5mm Al |
| Additional filtration | 1.5mm Al |
| The X-ray tube model | XD10DF-0.2/70 |
| Leakage radiation | ≤0.25mGy/h(65kV, 2.5mA, 2s) |
| Operation Mode | Intermittent loading operation |
| Target material | Tungsten |
| Anode angle of the X-ray tube | 15º |
| Nominal value of the focal point | 0.4mm |
| Filament current | 2A |
| Filament voltage | 2.35-3.35V |
| Maximum working tube voltage | 70Kvp |
| Continuous Power | 80W |
| Maximum short-time power | 0.75mmAL |





Key Features & Benefits:
Crystal-Clear Diagnostic Power: A high-frequency generator ensures superior image quality with exceptional detail and lower radiation dosage. See finer anatomical structures, cracks, and lesions with confidence for accurate diagnoses and better patient outcomes.
Wireless Freedom & True Portability: Untether from cords and fixed stations. Our lightweight, compact design allows you to effortlessly move the unit between operatories, to emergency cases, or even for off-site visits. True practice mobility is finally here.

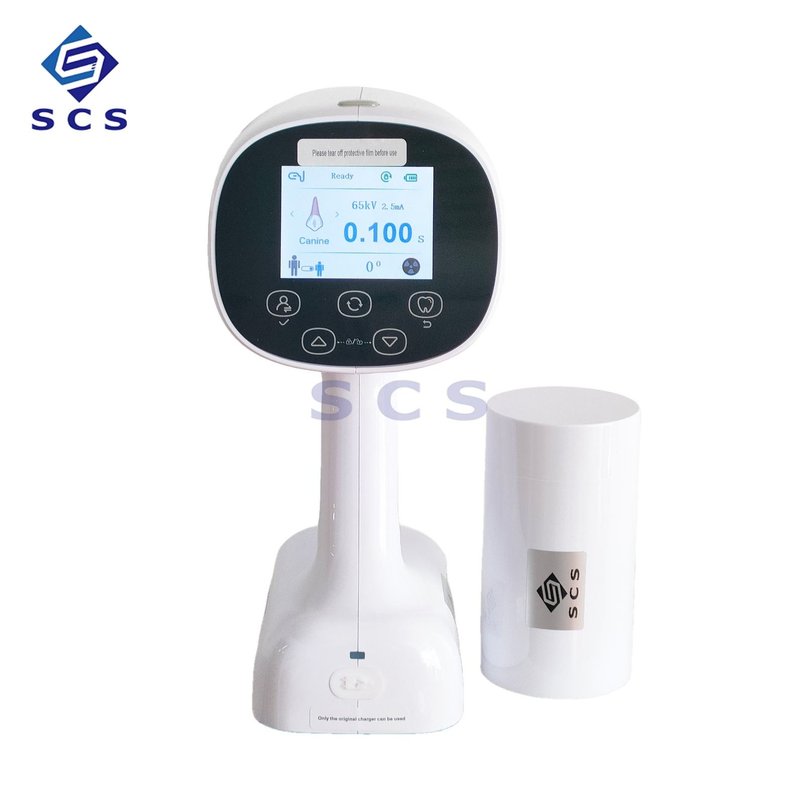

Intuitive Touch Screen Control: Navigate settings, capture images, and perform adjustments with swift, responsive taps on the vibrant, user-friendly interface. It’s as simple as using your tablet, minimizing training time and streamlining workflow.
Instant Digital Integration: Capture and view stunning digital radiographs in seconds. Images are ready for immediate analysis, enhancing patient consultation and enabling fast, informed treatment planning. Compatible with most dental software for seamless archiving.
Designed for Patient Comfort: The quiet operation and rapid exposure reduce patient anxiety. The portable design allows for positioning that minimizes discomfort, perfect for pediatric, geriatric, or special needs patients.
Elevate your standard of care while boosting practice productivity. It's the ideal all-in-one solution for new clinics, multi-location practices, dental surgeons, implantologists, and endodontists seeking a perfect blend of power, portability, and smart technology.
